ROC curve shows AUC = 1 for nearly all features despite variability in univariate results

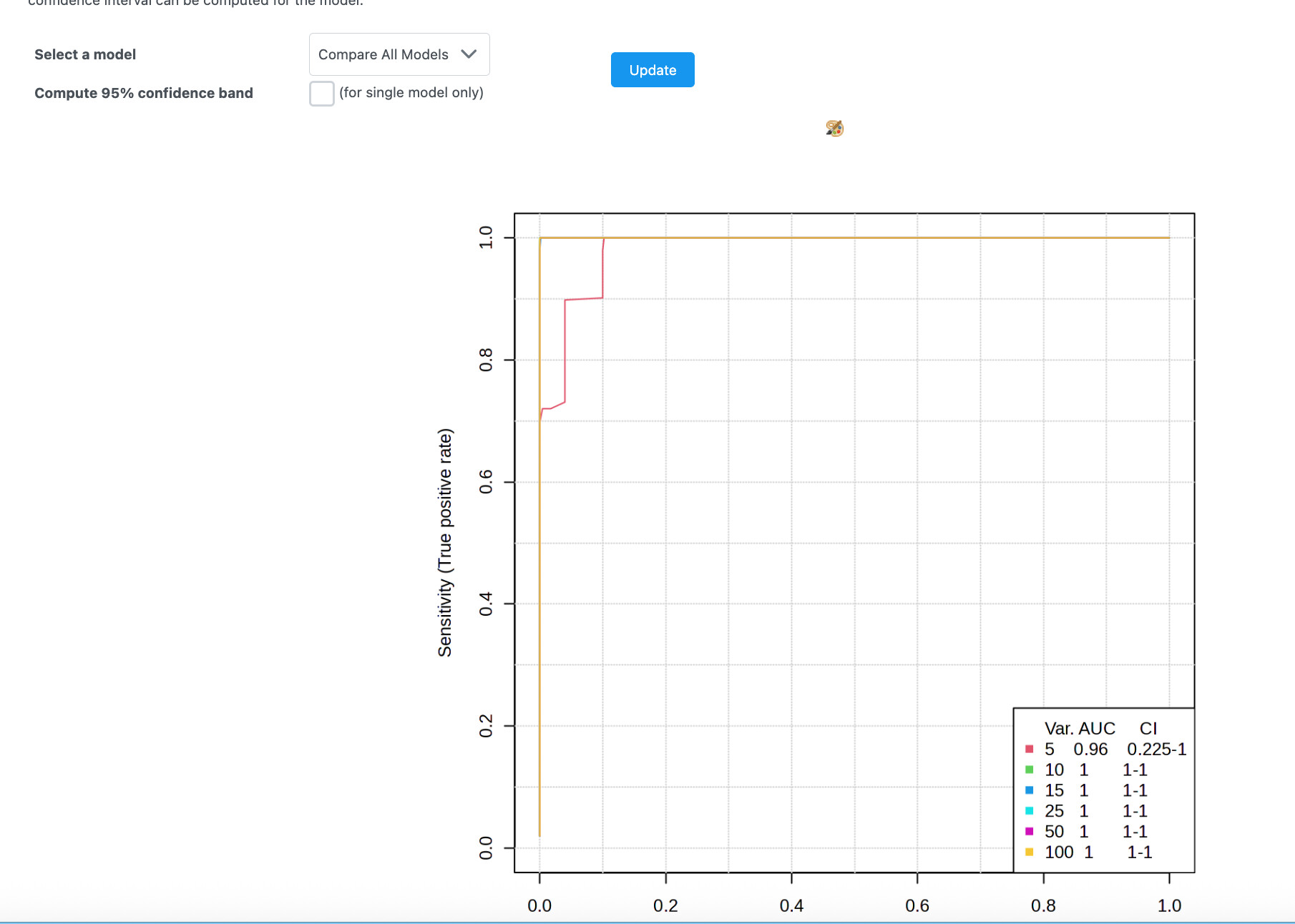

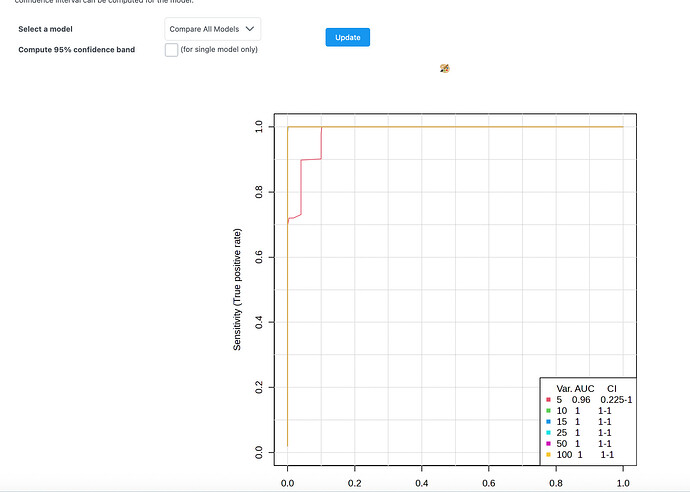

Hey this is an edit following the post guidelines. I’m using the Biomarker Analysis module in MetaboAnalyst to perform ROC curve analysis on 156 lipid species based on normalized peak intensity values from untargeted LC-MS data. When I run the analysis, the ROC plot shows nearly all AUCs as 1.0 and collapses into a single horizontal line at the top, which suggests perfect classification for almost every variable. However, when I check the “Univariate ROC” table, the AUC values clearly vary (e.g., 0.94, 0.87, 0.75), meaning the plot does not reflect this variability.

Is the ROC plot only showing the top 5 variables by default? If so, how can I adjust the settings to visualize ROC curves for all lipid features, or at least more than just the top 5?

Any suggestions to resolve this discrepancy between the AUC table and ROC plot would be greatly appreciated. I’m a student researcher working with lipidomic data for leukemia and this would help clarify my biomarker interpretation.

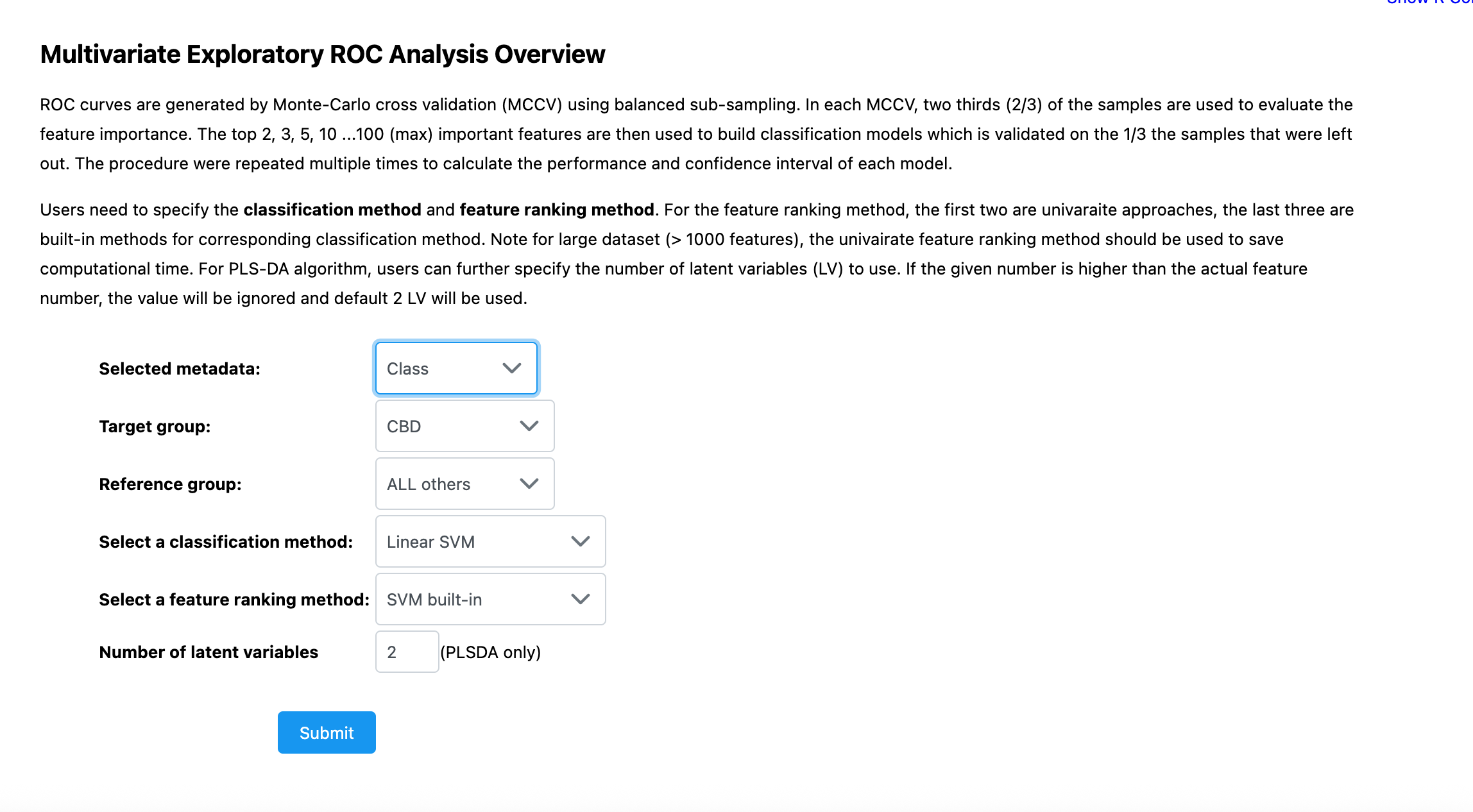

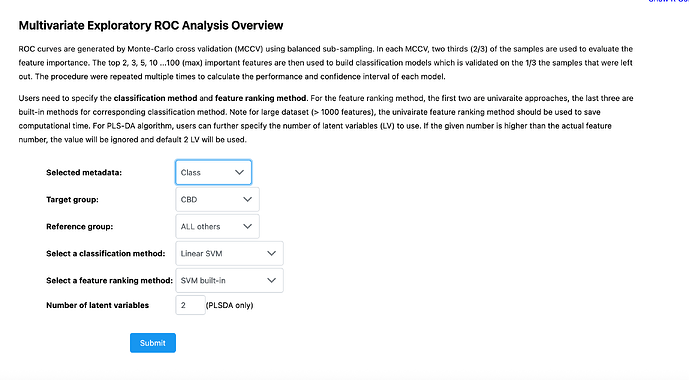

Tool and module: MetaboAnalyst 6.0 Biomarker Analysis Multivariate Exploratory ROC Analysis Result
Copy of data file:
OmicsForumROCCurve.csv (11.7 KB)

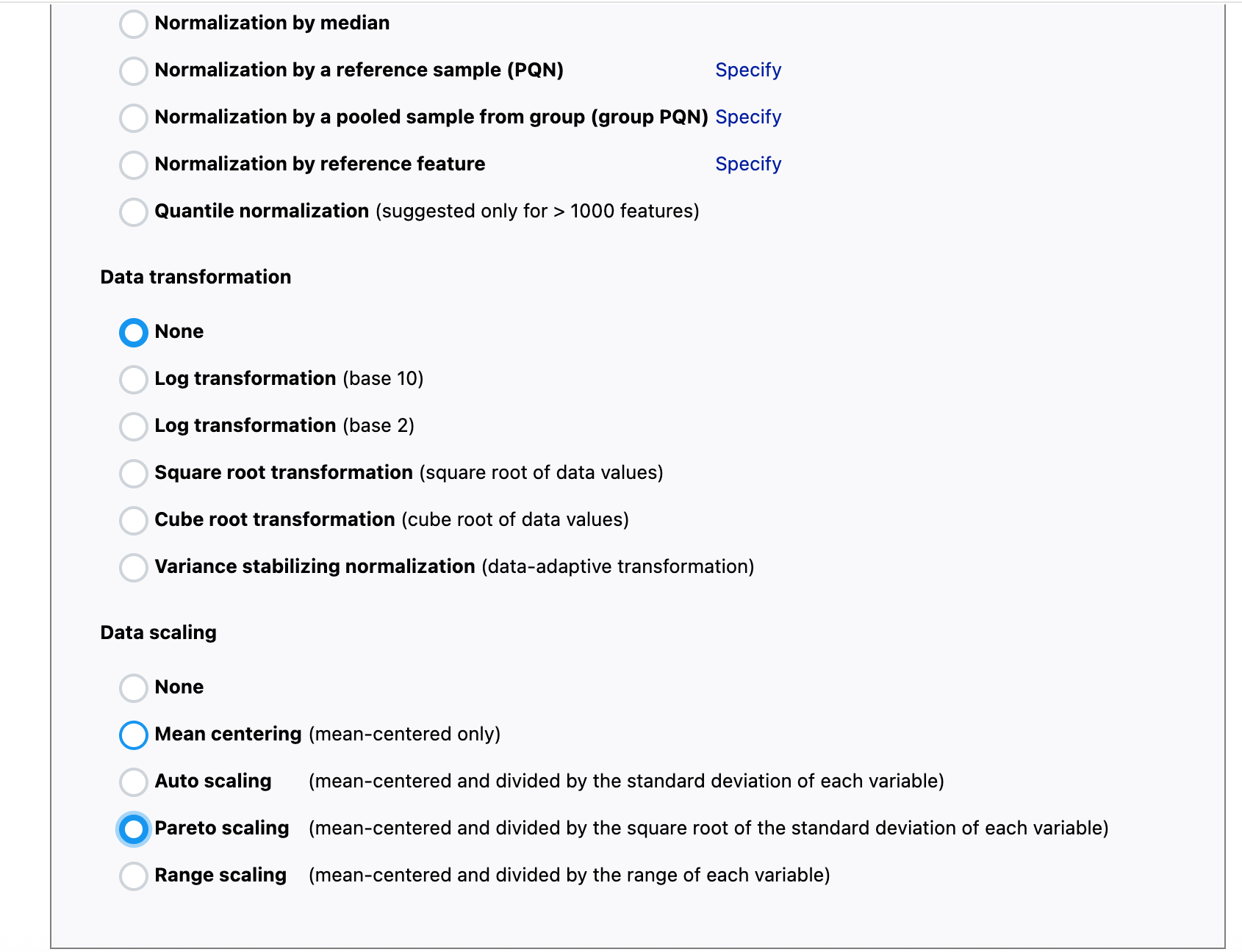

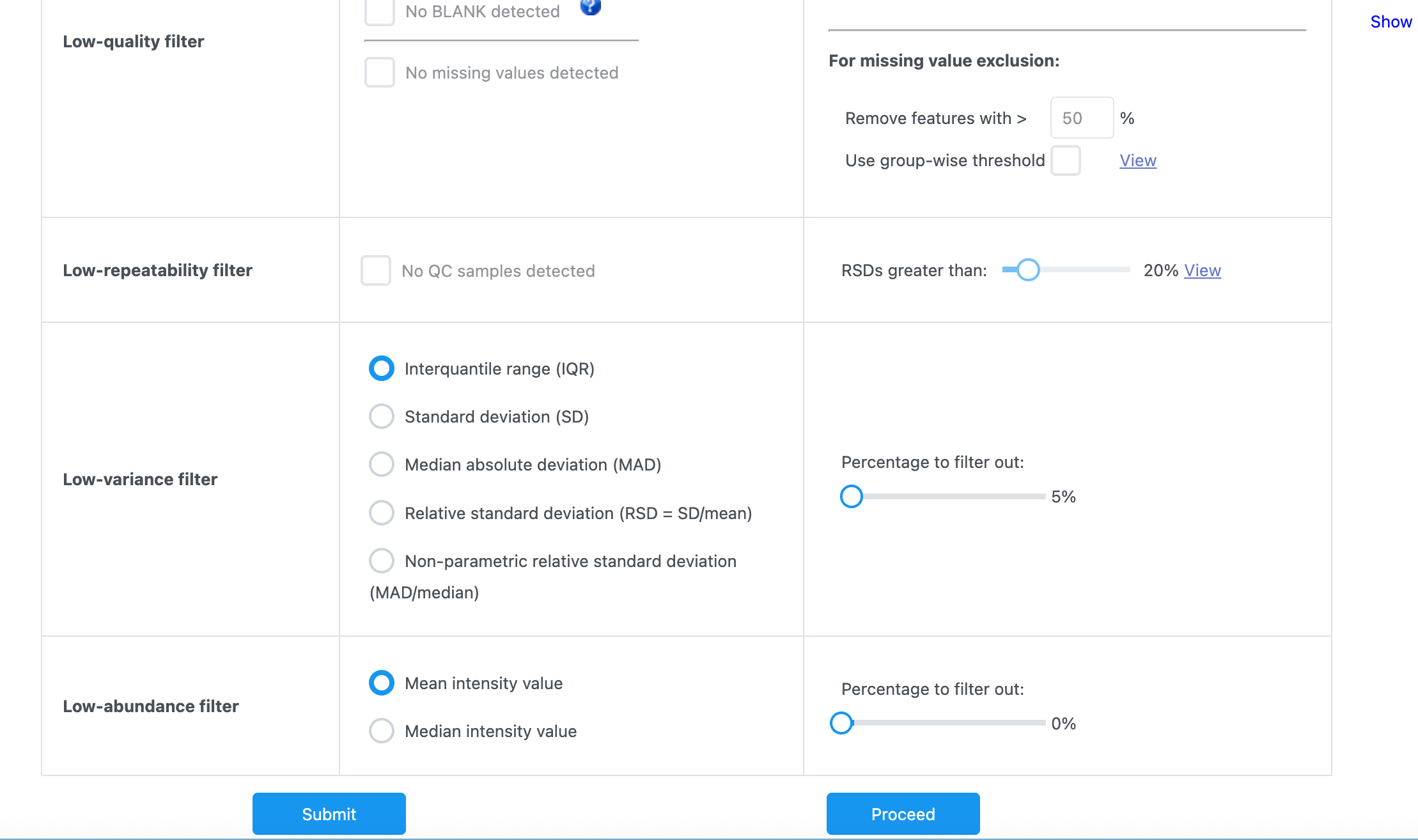

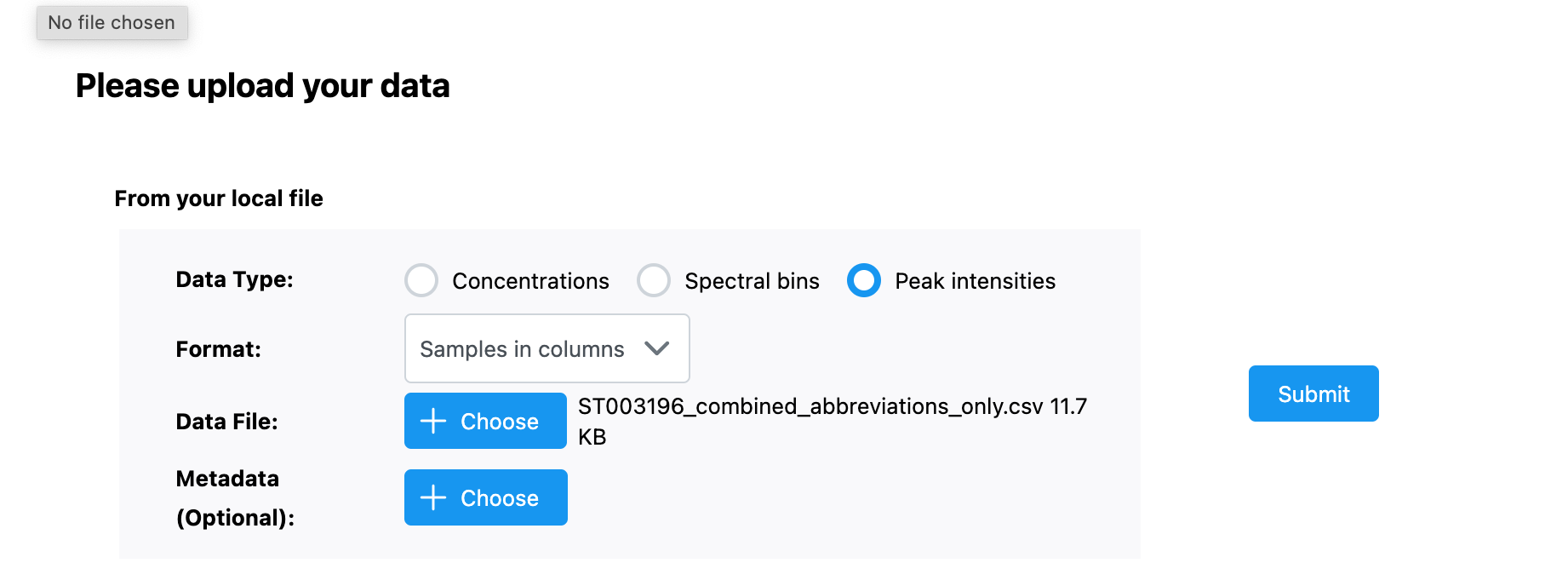

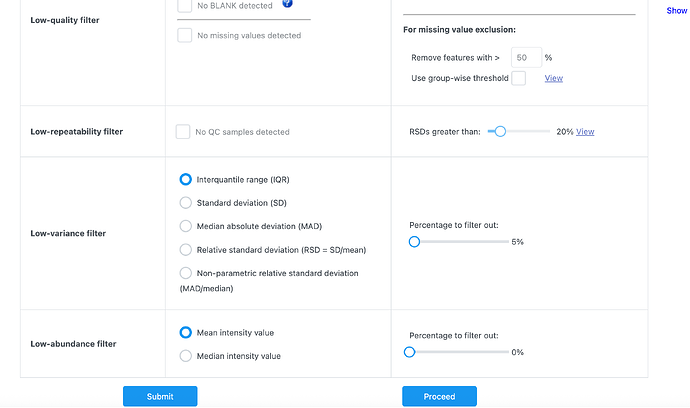

Steps: They have been uploaded as screenshots. The data settings I chose were Peak Intensities; Sample in columns; Pareto Scaling; Target Group as CBD, and Reference group as CTR.





Please read & follow our post guideline.

MetaboAnalyst is designed for interactive exploration. You need to click a variable to generate the plot. Automatic workflow and project management are features for pro tools

Hello I edited my post to follow the guidelines. Do you think you could give me a more comprehensive answer to fix this problem now?

Quick comments:

  1. You confuse multivariate ROC with univaraite ROC - they are not comparable in general.
  2. Multivariate biomarker analysis require large sample size (at least 20 / group), your sample size is too small.
  3. With 4-4, you can do t-tests, and you “might” use unvaraite ROC to get a general “feeling”, but it is also too optmistic by itself

For more details, please refer to Translational biomarker discovery in clinical metabolomics: an introductory tutorial

Alright I understand thank you. I am a high school student, so all of this is relatively new to me. One question I had was in my research paper would I be able to still include the ROC curve analysis despite it showing all AUC values as 1 because I want to upload the Random Forest analysis as that analysis does provide me with important lipid species. I was wondering this because I have never seen a research paper where the Random Forest is included but the ROC curve is not. I would appreciate your thoughts!

This tool is designed for senior graduate students and life science researchers who are familiar with molecular biology, with basic knowlege in stats and machine learning (but don’t do programming)

  • If you would like to learn machine learning => please use a proper data with decent size.
  • If you would like to understand the data itself => PCA and t-tests => read papers on those significant features and their potential functions / pathways
